In your previous
studies, you've seen various materials react to different forces.
Take a quick review of the Labs at the Building Big website if you have
not already done so.

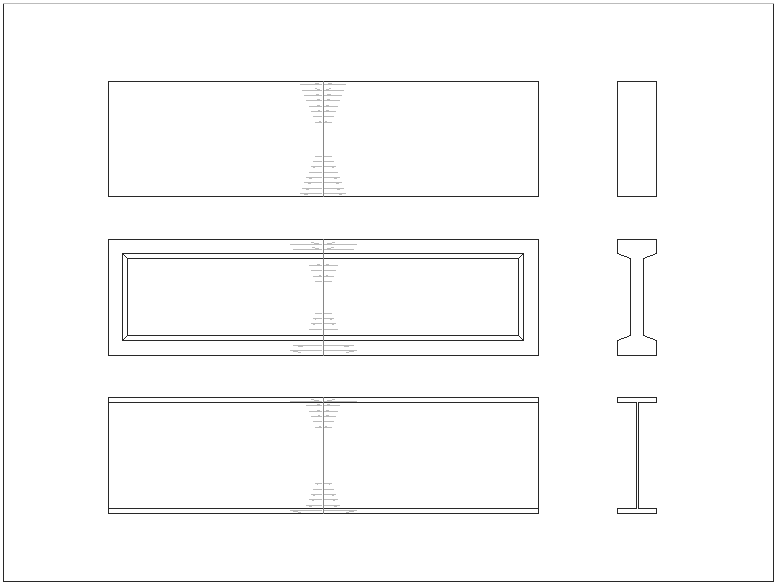

The diagram above shows three beams. The top is a
wood beam. The middle is a reinforced concrete beam as you would see
on any number of local freeway overpasses. The bottom is a steel
beam. For this example they are ordered by increasing ability to
resist bending forces. Why might one be stronger than the others?
The change in the cross-sections
from rectangular to I
shape is our focus. Whereas stresses are proportionately distributed
across the solid wood beam (with the maximum stresses occurring along the
top and bottom faces), the concrete beam tends to concentrate its high
stress regions in the enlarged regions top and bottom. A steel beam
takes this concentration to the extreme by concentrating the majority of
the stresses in the flanges top and bottom. The trend for
ever stronger steel beams is to push the flanges farther apart and to
increase their cross-sectional area. The penalty is increased weight
of material that detracts from the working load the beam can carry.
Hold that thought, because we
about to take the idea of forces separated by a distance to the next
level. |
