The Pyramids of Mexico. Additional photos of Mayan structures.
Inca Ruins. Note the degree to which the large
stones bear on and against one another. Also look for the simple
stone header above the doorway.
Egyptian temples including some that were carved into the mountain.
Look for the photo taken within the museum. Can you see the lintel
stone above the doorway?
Use the interactive materials lab at the Building Big website to see if
stone (or concrete) can resist tension.
A little farther back in time to the Minoan civilization. Look for
the arch in the photo at lower right.
A quick look back at the history timeline will let you
see that the Romans did not invent the arch.

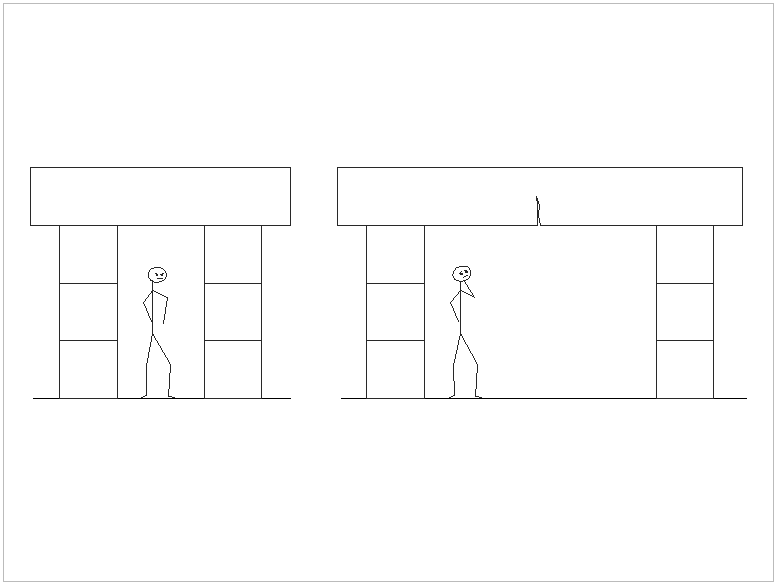

As you can
see from the linked examples, stone structures tend to look like the
drawing at left - thick walls and deep stone lintels. We are free
from the drawbacks of wood, but there is a problem: stone is weak in
tension.
The long span shown at
right highlights the problem. If the stone beam bends, tension
stresses will initiate a crack near the point of maximum stress....and the
beam will fail. This fact was known by ancient builders and this
limitation expresses itself in the historic architecture of many cultures.
